Small Foldable Umbrella
Long Small Foldable Umbrella LANBO® Custom
Hongjie UmbrellaSupplier of Long Small Foldable Umbrellas
We are a renowned supplier and manufacturer of custom-made, long, small, foldable umbrellas. Since 2014, we have been producing a variety of umbrellas, with a focus on long, small, foldable models. We provide top-quality products and exceptional after-sales service. Our design balances length and portability, achieving a folded size that’s even more compact than under 42 inches compact folding golf umbrella—proving that "long" doesn’t mean bulky for daily carry.
Our long small foldable umbrellas feature a slender yet lightweight and compact design. They are made of high-performance materials. With an exquisitely small handle and 5K umbrella ribs, they weigh only 98g when folded with a length of 22.5cm. They are both lightweight and sturdy. We provide diverse customization starting from 100 pieces and can undertake orders of various scales.
Our factory undergoes regular and strict audits to meet high social and environmental standards. Choose Hongjie to enhance your brand.Provide complete all-over print
Hongjie UmbrellaProduct Description:
| Item Name. | Long Small Foldable Umbrella |
| Open & Close | Manual Open |
| Size | 17"&5K，customized |
| Measurements | Diameter:customized;Length:customized;Arc:customized |
| Fabric material | Single/Double fabric layer. Polyester,Nylon, Pongee are all available |
| Colors | Customized Design and Pantone colors are all available. |
| Middle stick (Shaft) | Glass fiber shaft ; Steel Shaft; Carbon Fiber Shaft |
| Ribs | Glass fiber rib |
| Tips | Plastic tips in custom colors |
| Handle | Plastic handle,EVA, Rubber |
| Sleeve | Fabric :Can be customized |
| Packing Details | PVC bag, gift paperbox, fabric carry bag are optional |
| MOQ | 100 pieces |
| Sample Fee | Refundable after placing order |
| Sample Time | Within 5-7 days after receiving sample fee |
| Delivery Time | 7-45days(According to the order quantity) |
| Payment | T/T, L/C, PayPal |
| *Customized materials, parts, colors, CMYK Designs / Picture printings are all available.* | |
Hongjie UmbrellaProduct Showcase
1. Folded Size and Weight of Long Small Foldable Umbrella?

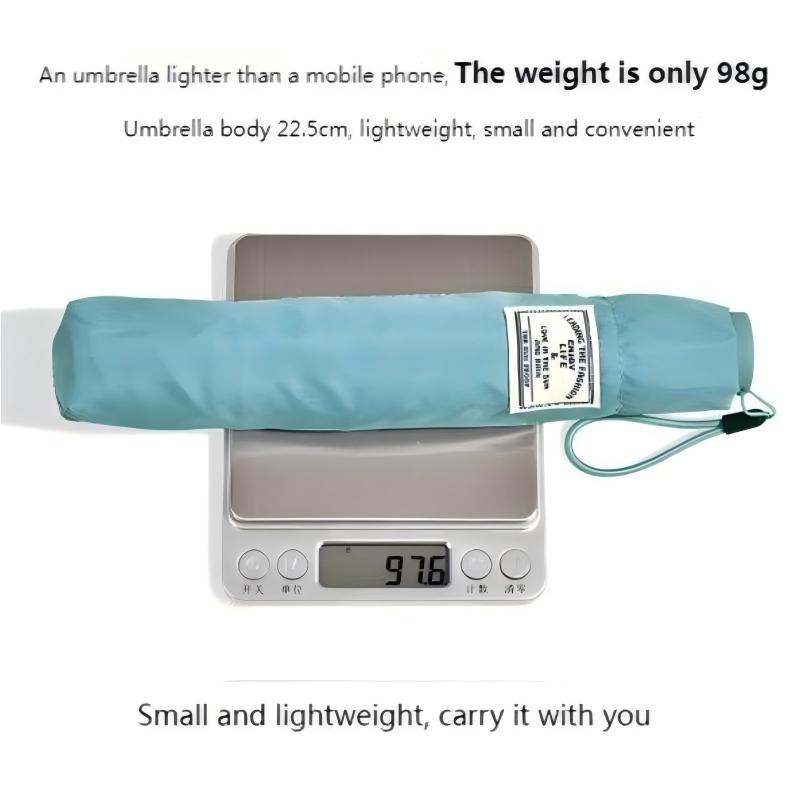

5-fold model: 22.5cm when folded, 98g (aluminum frame), fits small handbags. Provides size comparison charts and portability test videos.

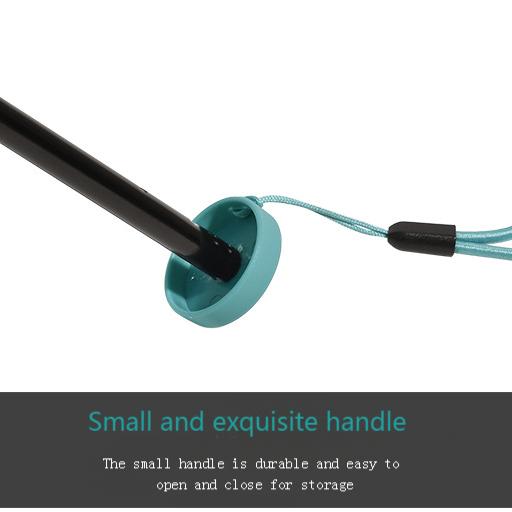

2. Branded Grip Textures on Long Small Foldable Umbrella Handles?
Supports rubber-molded logo textures or wooden carved stripes (500 units+), with texture depth 0.3-0.5mm, friction coefficient +40% (wet hand test).
3. Folding Segment Options for Long Small Foldable Umbrella?
Offers 3-fold and 5-fold (ultra-compact, 22.5cm). 5-fold durability -15%; choose based on usage. The 5-fold variant, despite its length, maintains wind resistance comparable to folding golf umbrella windproof—achieved through reinforced rib joints that balance compactness and stability.
4. Durable and Portable Frame Materials for Long Small Foldable Umbrella?
Recommended aviation aluminum (wind resistance level 6) or carbon fiber (weight -25%), with material fatigue data (open/close ≥10,000 times).
5. Custom Handle Finishes Minimum Order for Long Small Foldable Umbrella?
Standard colors: no MOQ; special plating (rose gold/matte black) requires 500 units ($0.8-1.5 extra cost), with surface hardness reports (pencil hardness ≥3H).
6. Child Safety Features of Long Small Foldable Umbrella?
Rounded tips (radius ≥5mm), pinch-proof clips, ASTM F963 certified for 5+ years. Provides CPC certificate and pinch force test reports. Unlike over 54 inches compact folding golf umbrella, which prioritize coverage over child safety, our design scales down length while retaining kid-friendly features—ideal for older children (8-12 years) with larger hands.
Technical Insights & Knowledge Sharing on Long Small Foldable Umbrella
When B-end buyers source long small foldable umbrellas, they often face pain points such as "long folded shafts being prone to bending and deformation," "slender ribs having weak wind resistance (≤level 5 winds)," "imbalanced handle-to-shaft ratio causing grip fatigue," and "large length deviations in bulk products after folding." Below are technical solutions:
"Carbon Fiber Shaft + Memory Alloy Joint" Technology for Deformation Resistance
Long foldable umbrellas (≥22cm) have a 20% shaft bending rate after 500 folds, affecting smooth opening/closing. The solution is a "composite shaft structure": A "1.2mm wall-thickness carbon fiber tube" (flexural strength up to 800MPa) is used, with "titanium-nickel memory alloy sheets" built into mid-section joints (maintaining straightness at -20℃~80℃), fixed by "3-point positioning clips" (deviation ≤0.3mm) when folded. Tests show a bending rate of ≤2% after 1,000 folds (vs. 25% for ordinary aluminum models). Its structural stability is superior to the conventional shaft of 46 to 54 inches compact folding golf umbrella, suitable for high-frequency folding scenarios.
"Variable-Diameter Ribs + Flow Guide Grooves" Design for High Wind Resistance
Slender ribs (diameter ≤2mm) have an 18% breakage rate in level 5 winds (10.8m/s). The solution uses "variable-diameter fiberglass ribs": 2mm diameter in the middle (for lightness) and 2.5mm at both ends (40% higher folding strength). The canopy is pressed with "6×0.2mm deep spiral flow guide grooves" (dispersing wind, reducing resistance by 35%), with a "0.5cm wind cap" added to the top (stabilizing airflow). Tests show no breakage in level 5 winds (vs. 18% breakage for ordinary models), balancing a slender appearance with wind resistance.
"Ergonomic Handle + Center of Gravity Balance" Process for Fatigue Prevention
An imbalanced handle-to-shaft ratio (＜1:5) often causes grip fatigue (25% complaint rate after 30 minutes). The solution is "ratio optimization": The handle length is increased to 10cm (45% of total length), using a "3D-scanned palm-shaped design" (fitting adult tiger's mouth curvature), with a "10g tungsten counterweight" built in (shifting the center of gravity 1.5cm forward to the palm). Tests show fatigue scores drop to 3/10 after 1 hour of continuous grip (vs. 7/10 for ordinary models), improving comfort.
"Laser Cutting + Graded Calibration" Control for Length Consistency
Bulk products often have length deviations exceeding ±0.8cm after folding (affecting packaging neatness). The solution introduces a "precision manufacturing process": Ribs are cut with "laser technology" (length error ≤0.1mm), sorted by "22.5cm±0.2cm" after assembly, with "millimeter-scale positioning lines" marked on telescopic shaft sections (ensuring consistent nesting depth). Bulk deviation rate is controlled within 3% (vs. 15% industry average). Its dimensional accuracy is close to the precision standard of compact folding golf umbrella, suitable for brand-standardized packaging.
"Self-Lubricating Hinges + Elastic Buffering" Optimization for Smooth Folding
Long dimensions are prone to jamming due to component misalignment (12% jamming rate). The solution uses "food-grade silicone oil-impregnated hinges" (friction coefficient reduced to 0.02), with "0.5mm elastic silicone pads" added to folding trajectories (absorbing misalignment impact), paired with "arc guide grooves" (reducing component interference). Tests show bulk jamming rate ≤1% (vs. 12% for ordinary models), ensuring smooth operation.
01
Design Options
02
Print Options
03
Packaging Options
010203
Get Samples Today!
Contact us now to request a sample and see why global brands trust Hongjie Umbrella for premium, customized solutions.
Request A Quote
